Plating Chillers & Cooling Systems
Industrial chillers for precise plating bath temperature control. Titanium heat exchangers, direct & indirect cooling, ±1°C precision. For nickel, chrome, zinc & anodizing baths.
Precision Cooling for Plating Baths
Bath temperature directly controls plating quality. Poor temperature control causes uneven coating, pitting, burning and rejects. Our chillers maintain stable bath temperature for consistent, high-quality plating.
Cooling Methods
Direct Cooling
Plating solution enters the chiller evaporator directly (through a filter). Requires pure titanium or 316L acid-resistant evaporator. Simpler system, fewer components.
Indirect Cooling
The recommended method. Coolant never contacts the plating bath. Heat is transferred via a titanium or stainless plate heat exchanger. Three-stage system: Coolant → Heat Exchanger → Bath. Protects the chiller from corrosive bath chemicals.
Air or Water Cooled
Air-cooled condensers for simple installation. Water-cooled condensers for higher efficiency in larger plants. Refrigerants R-410A / R-134a.
Chiller Specifications
| Parameter | Specification |
|---|---|
| Cooling Capacity | Custom - sized to your bath heat load |
| Temperature Control | ±1°C standard, ±0.5°C precision |
| Heat Exchanger | Titanium tube or 316L stainless plate |
| Cooling Method | Direct or indirect (recommended) |
| Condenser | Air-cooled or water-cooled |
| Refrigerant | R-410A / R-134a |
| Compressor | Scroll / screw, optional variable speed |
| Material | Corrosion-resistant non-ferrous fluid circuit |
| Applications | Nickel (40-60°C), Chrome, Zinc, Anodizing (15-25°C) |
| Control | Digital PID temperature controller |
| Certification | CE, ISO 9001 |
| Warranty | 2 years |
Chiller Models
Plating Bath Chiller
Air-cooled chiller for nickel, zinc & copper baths. Indirect cooling with titanium heat exchanger. ±1°C control.
Request Info →

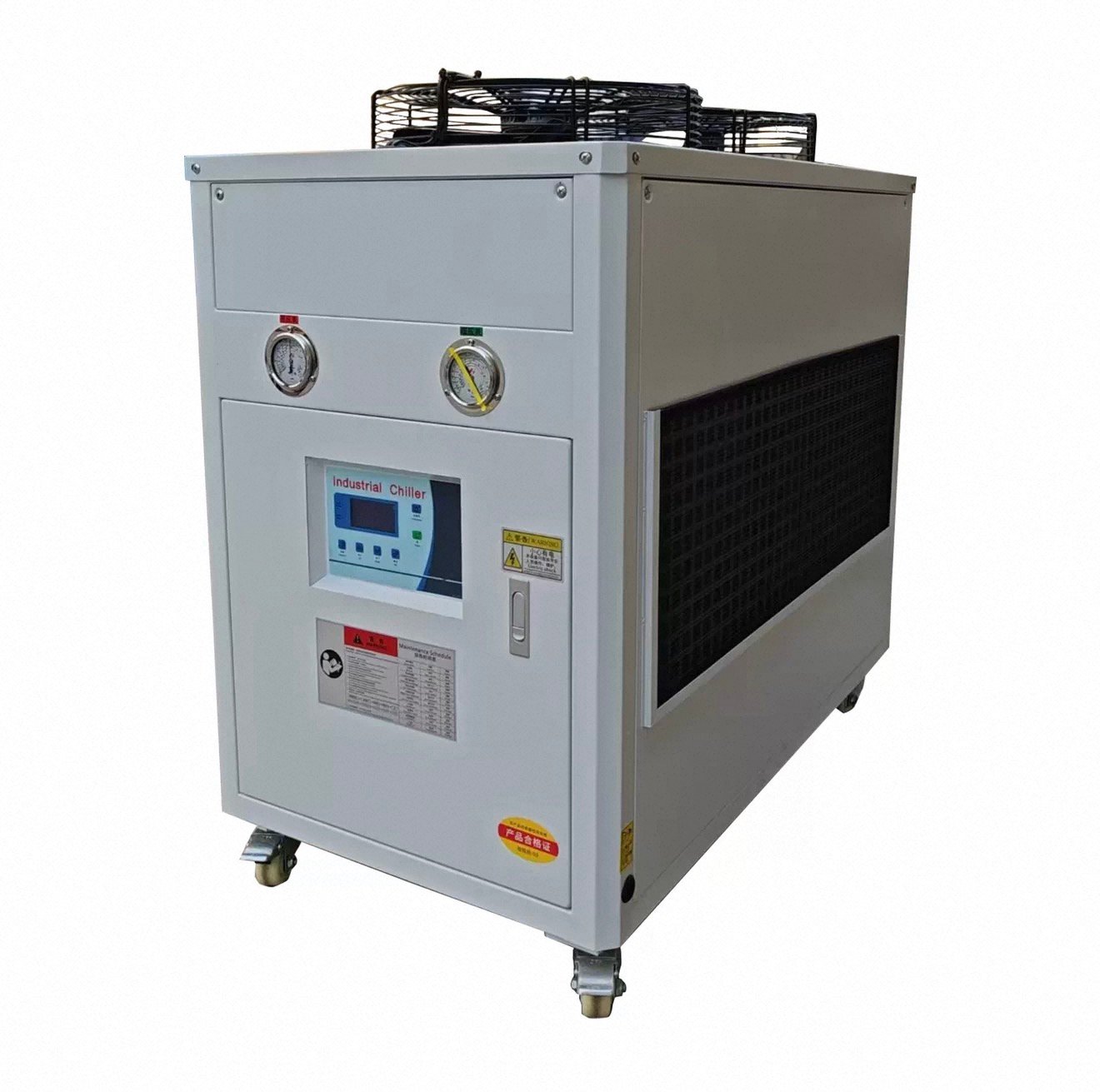

High-Precision Chiller
±0.5°C control for hard anodizing (0-10°C) & PCB plating. Variable speed compressor for stable cooling.
Request Info →

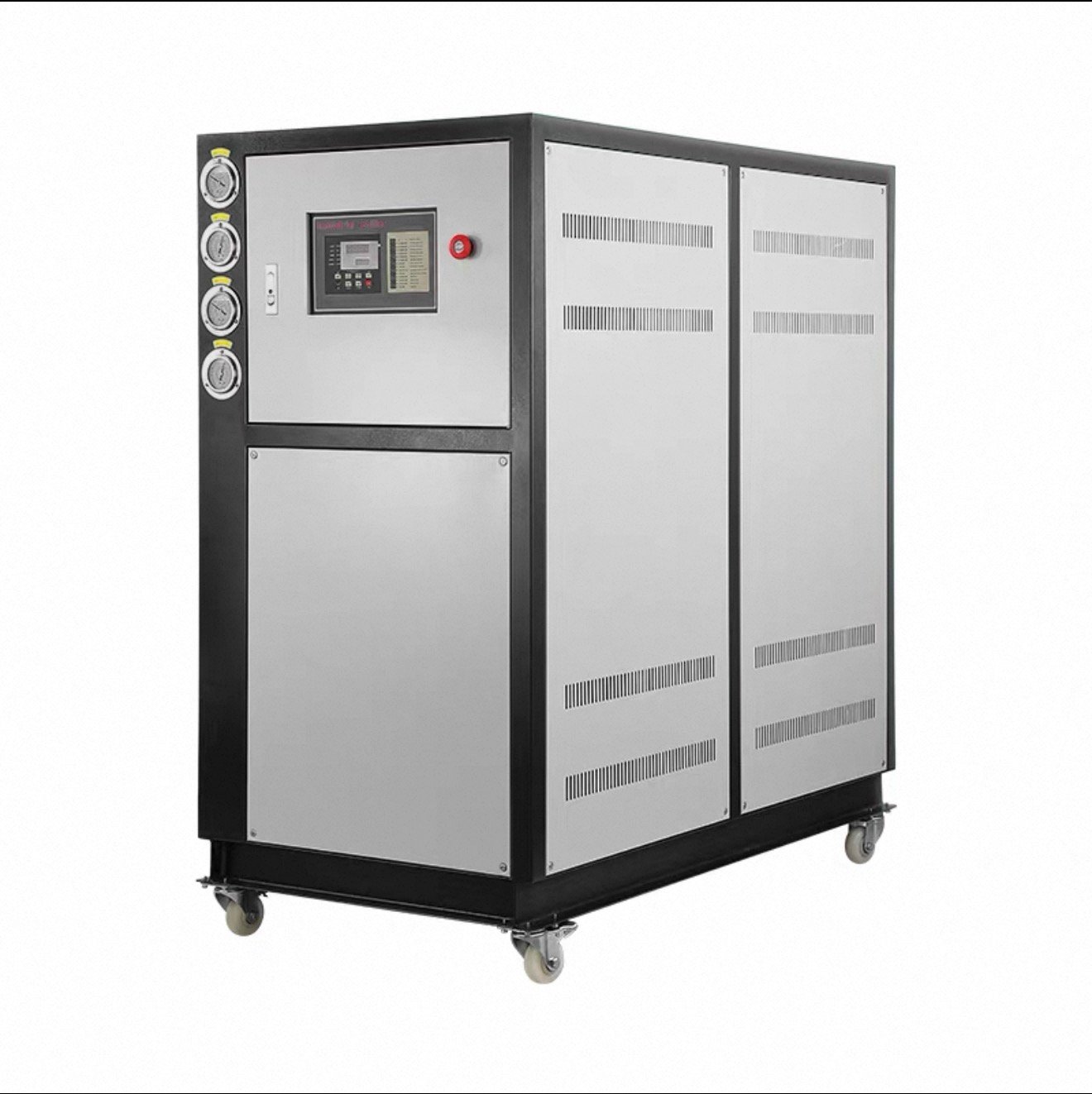

Large Industrial Chiller
Water-cooled chiller for large plating & anodizing lines. High cooling capacity, screw compressors for continuous duty.
Request Info →Need a Plating Chiller?
Tell us your bath size & process — we'll size the right chiller within 24 hours.
