Automatic Gantry Plating Line
PLC-controlled automatic electroplating line for high-volume zinc, nickel & chrome plating. Designed for automotive parts, fasteners & industrial hardware. 50-500m²/day capacity.
Plating Lines
Automatic Gantry Hoist Plating System
Our automatic gantry plating line features a programmable hoist system with PLC control, providing consistent, high-quality plating results for large-scale production environments.
50-500 m²/dayProduction Capacity
Siemens / MitsubishiPLC Control System
Zinc, Nickel, ChromeProcess Options
±5%Coating Uniformity
Key Features
Why Choose Our Gantry Plating Line
- Siemens/Mitsubishi PLC with touchscreen HMI
- Automatic hoist with precision positioning
- Process recipe storage for multiple products
- PP / PVDF / SS316L tank construction
- Titanium heating with PID temperature control
- Full exhaust enclosure & scrubber connection
- RS485 remote monitoring & diagnostics
- Energy-efficient rectifier integration
- Automatic chemical dosing system optional
- Filtration & solution agitation included
- CE & ISO 9001 certified design
- 2-year warranty with remote support
Gallery
Product Images
Additional views of the Automatic Gantry Plating Line

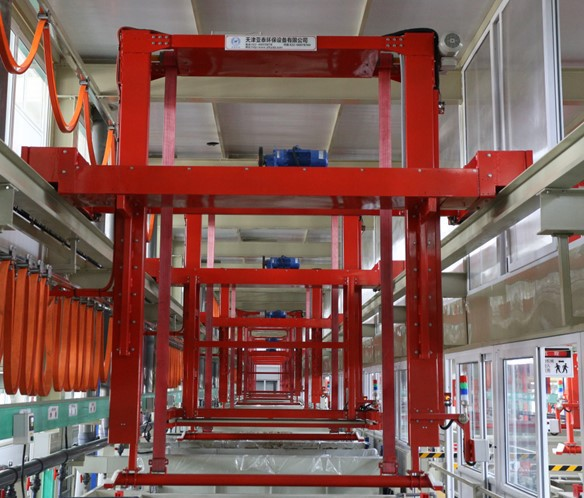

Automatic Gantry Zinc Plating Line
Hoist & Lifting System

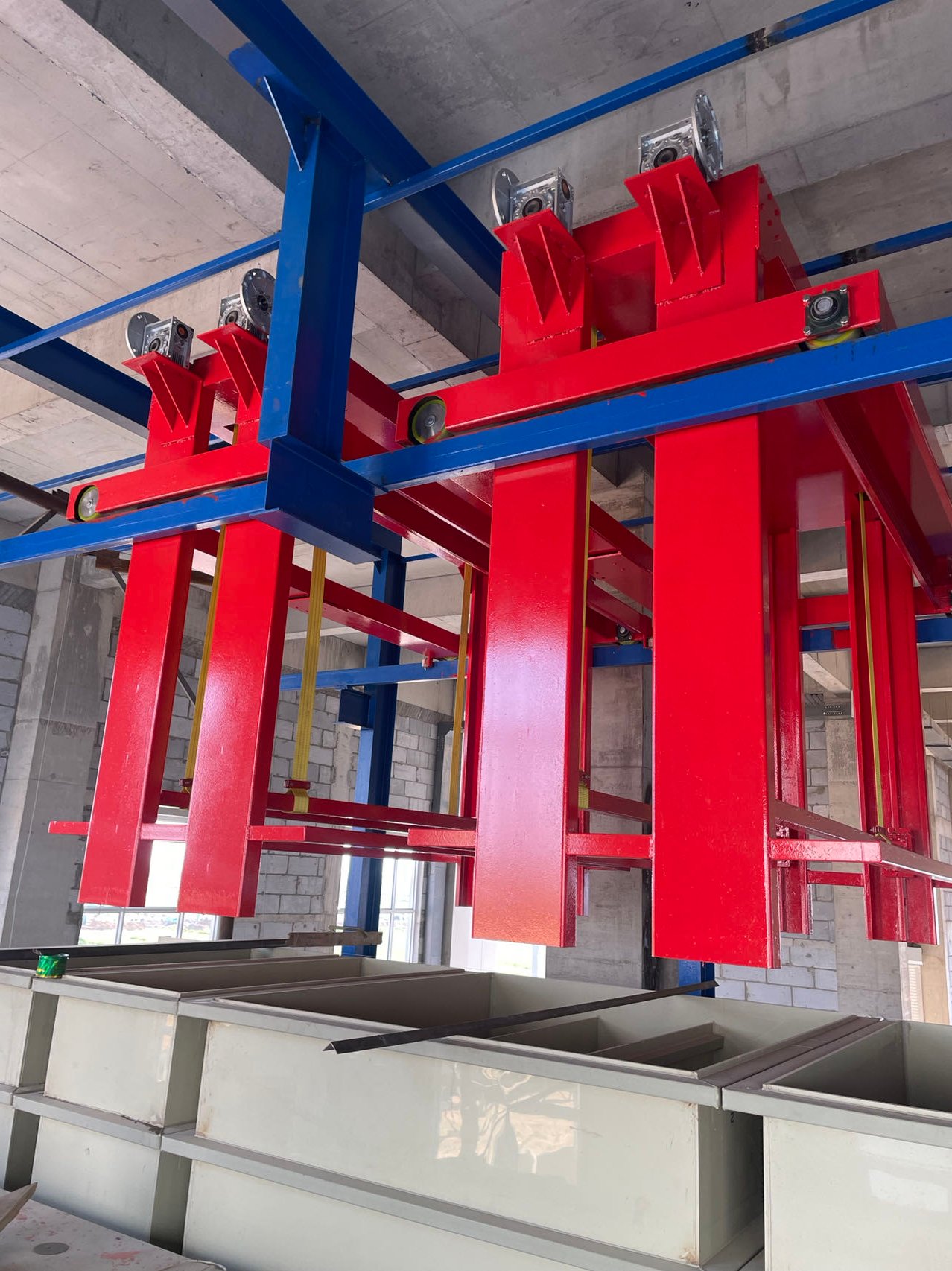

High-Track Plating Line
Plating Tanks & Stations
Technical Data
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Range | TS-GP-50 to TS-GP-500 |
| Production Capacity | 50 - 500 m²/day |
| PLC Brand | Siemens S7-1200 / Mitsubishi FX5U |
| Hoist Type | Gantry / Overhead crane with VFD control |
| Tank Material | PP (Polypropylene) / PVDF / SS316L |
| Heating System | Titanium heat exchanger + PID controller |
| Rectifier Integration | 0-5000A HF switching, RS485 controlled |
| Process Control | Touchscreen HMI with recipe management |
| Exhaust System | Full enclosure with mist eliminator |
| Power Supply | 380V / 415V / 480V, 3-phase, 50/60Hz |
| Certification | CE, ISO 9001, SGS |
| Warranty | 2 years + lifetime remote support |
Applications
Industries We Serve
Automotive
Bumpers, trim, fasteners, brake components & engine parts
Hardware & Fasteners
Screws, nuts, bolts, washers & industrial hardware
Architectural
Door handles, locks, hinges & decorative hardware
Electrical
Connectors, terminals, busbars & switchgear components
Need a Custom Gantry Plating Line?
Tell us your production requirements — we'll design a tailored automatic plating line for your specific process within 24 hours.
