Plating Solution Filtration Systems
Cartridge & carbon filtration systems for clean plating solutions. Magnetic drive pumps, corrosion-resistant PP/PVDF construction, filtration to 0.5μm for defect-free plating.
Plating Solution Filtration Systems
Continuous filtration removes anode sludge, particulate and organic contamination from plating solutions. A clean bath means fewer pits, roughness and rejects — the foundation of consistent plating quality.
Why Choose Our Filtration Systems
- Cartridge filtration to 0.5-10 μm
- Activated carbon for organic removal
- Magnetic drive pumps - leak-proof
- PP / PPF / PVDF corrosion-resistant body
- Handles acids, alkalis & plating solutions
- Flow rates 1-100 m³/h
- Quick-change filter cartridges
- Low maintenance design
- Options: disc, bag & cartridge media
- For nickel, copper, zinc, chrome baths
- Continuous 24-hour operation
- 2-year warranty
Filtration System Specifications
| Parameter | Specification |
|---|---|
| Flow Rate | 1 - 100 m³/h |
| Filtration Precision | 0.5 - 10 μm (cartridge), 10-100 μm (bag) |
| Filter Media | Cartridge, disc or bag type |
| Body Material | PP / PPH / PVDF corrosion-resistant |
| Pump Type | Magnetic drive (leak-proof), silicon carbide bearings |
| Max Temperature | 70 - 90°C depending on material |
| Carbon Option | Activated carbon for organic contamination |
| Applications | Nickel, copper, zinc, chrome, gold baths |
| Circulation | 2-4x tank volume per hour recommended |
| Certification | CE, ISO 9001 |
| Warranty | 2 years |
Filtration System Models

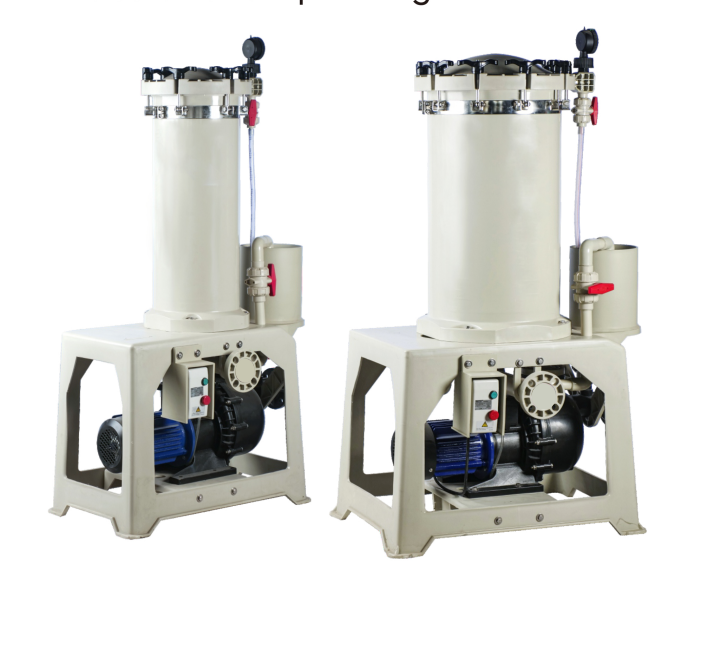

Cartridge Filtration System
For nickel, copper & zinc baths. 10μm standard cartridges. Flow 60-250 L/min. PP construction.
Request Info →

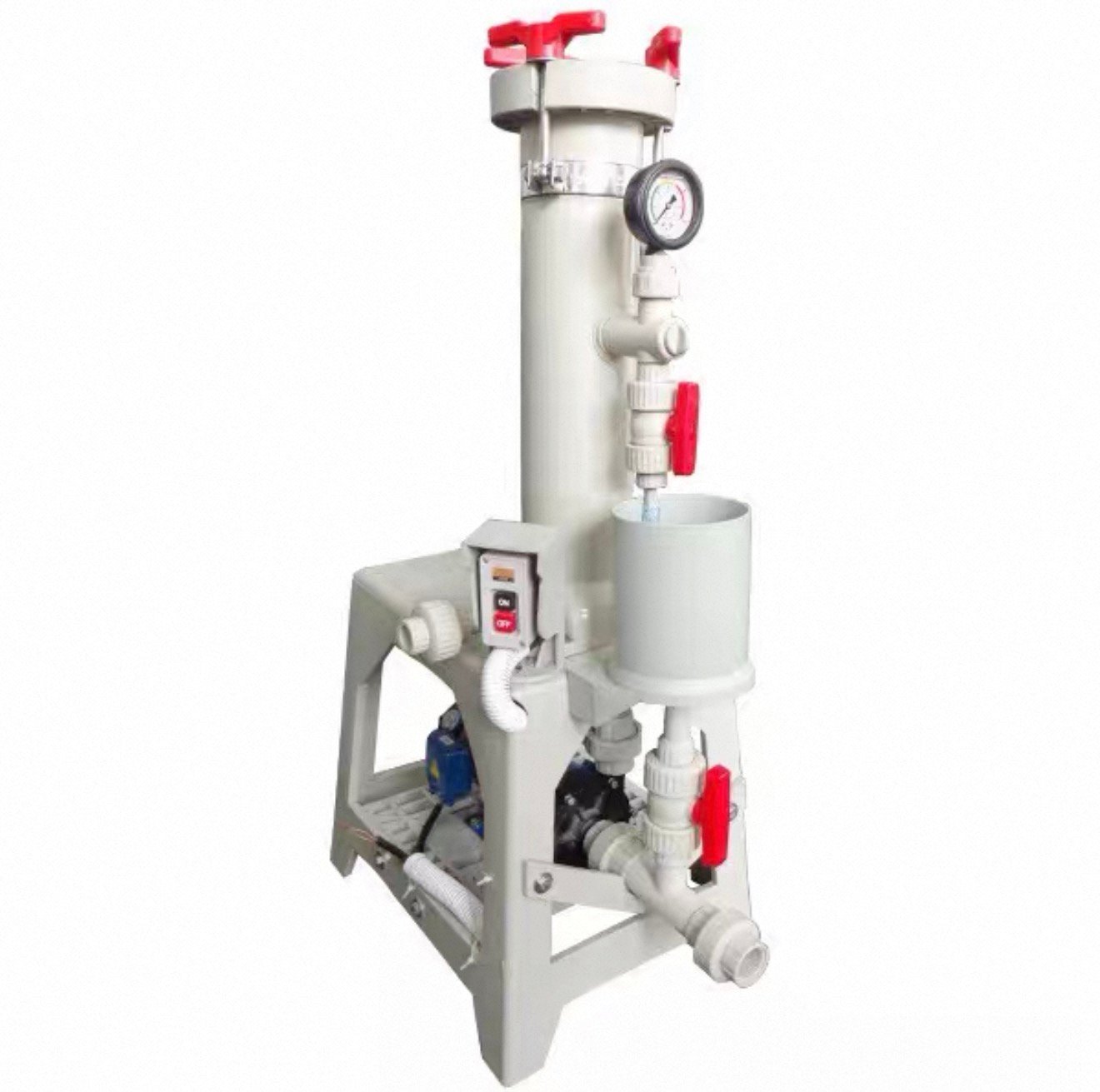

Compact Filter Unit
Compact filter for small tanks & precious metal baths. 60-250 L/min. Quick-change cartridges. Ideal for labs & small lines.
Request Info →

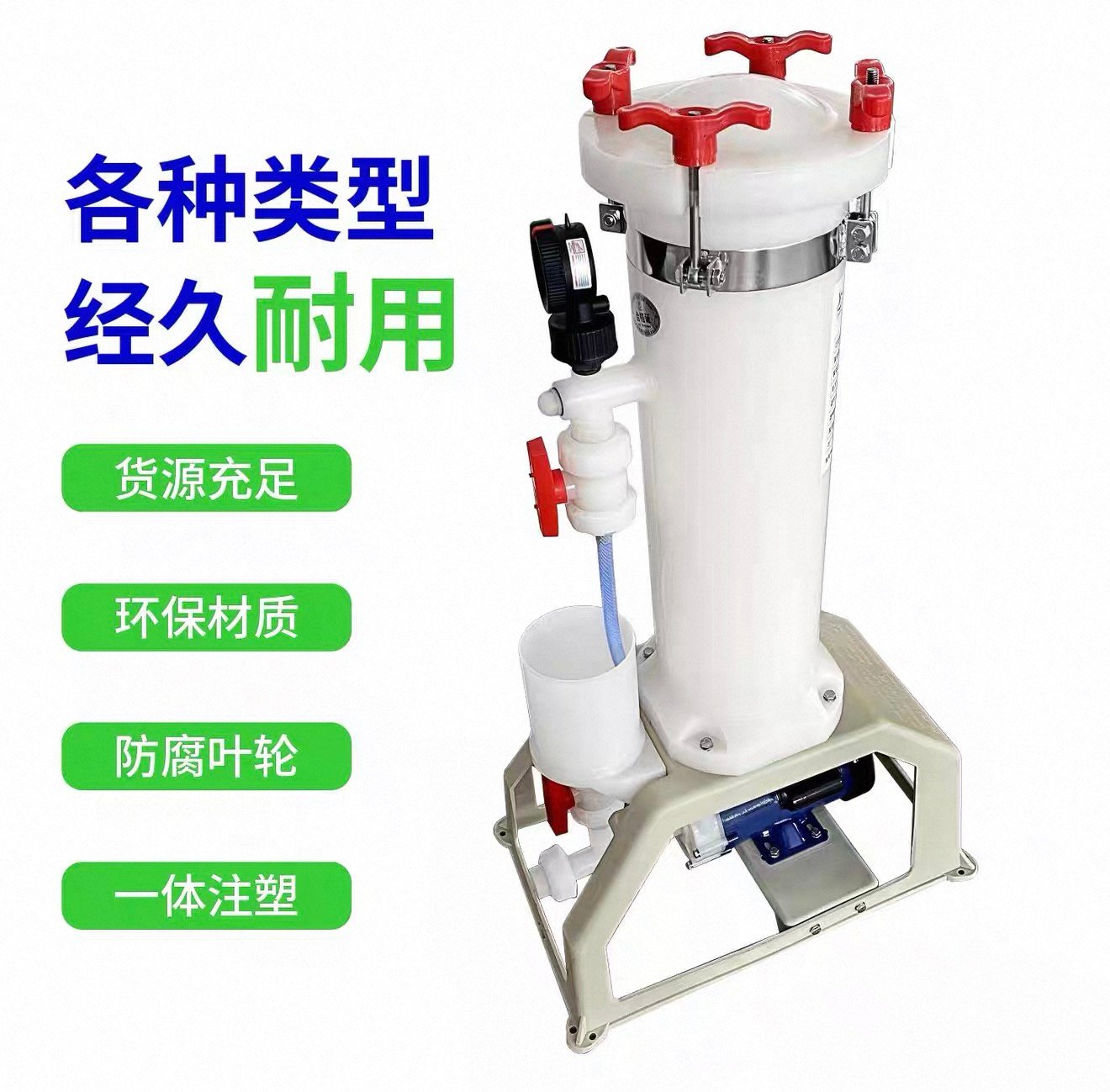

Chrome Solution Filter
PVDF construction for chromic acid baths. High-temperature resistant to 90°C. For hard chrome & decorative chrome.
Request Info →Need a Filtration System?
Tell us your tank size & plating process — we'll recommend the right filtration system within 24 hours.
